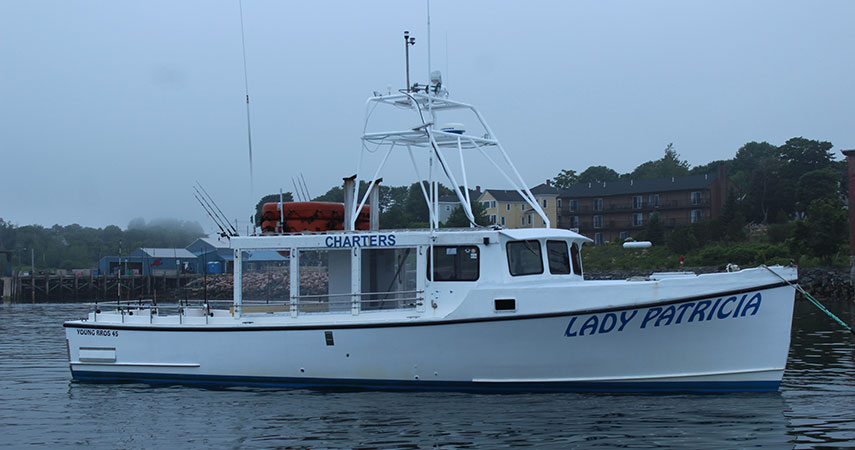

45' Coast Guard Inspected Young Brothers

45 Young Brothers

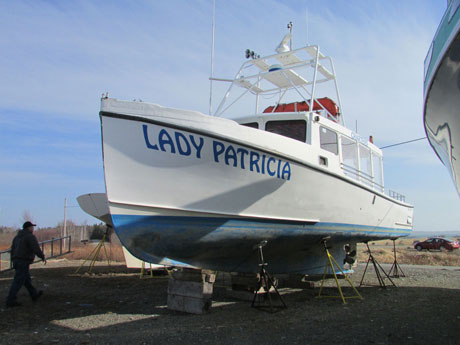

Vessel Name: Lady Patricia
Young Brothers, 1986
Doc# 915051 Manufactures # YBFB45120886
Certificate of inspection: Current
42 Plus 2 out to 20 nm 100 miles certification for 20 persons
Length: 45' Beam: 15' Draft 5' (approximate)
Gross ton: 35 Gross Ton (according to documentation)
Originally used for Ground fishing charter

Hull Construction and Details
Hull Material: Molded fiberglass reinforced plastic laminates with polyester resin, non cored
Framing Material: Encapsulated wood stringers and transverse frames
Decking Material: 3/4" plywood decking with fiberglass overcoat
Superstructure Material: Molded fiberglass
Bulkheads: Marine plywood tabbed to hull structure
Hull Ventilation: Natural ventilation system
Bilge Ventilation: Natural flow through ventilation
Hand rails on wheelhouse roof
Port lights: fixed ports
Equipped with transom scuppers and freeing ports

Machinery

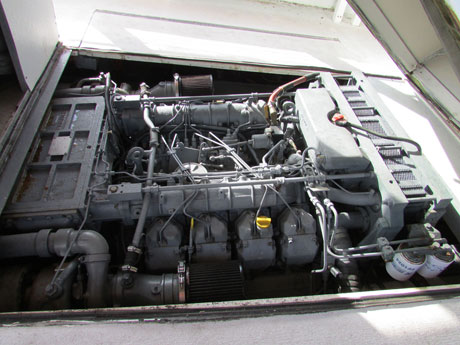

Engine: Year: 2003
Make: Deutz
Model: BF&M
Horsepower: 600 hoursepower@2100rpm
Engine hours: 10,200
Engine cooling system: Fresh water cooled with head exchanger
Exhaust: Dry stacks, properly wrapped
Fuel Lines: type A1 fire retardant hose
Fuel filters: Racor 1000MA separator with engine mounted secondaries
Fuel shut off valves
Electrolysis protection
Engine room ventilation: Natural flow through
Blower: 12volt
Engine alarms: Gauges and audible alarms
Engine controls: Morse cable controls
Reduction gears: ZF
Model: 350 PL
Ratio: 2.077:1
Propeller: 5 bladed Bronze wheel
Propeller shaft: Equipped with Evolution Drive System 2 1/2" SS

Steering system
Hydraulic steering system
Single station
Emergency Steering: equipped with Tille

Electrical systems and equipment
12/24 volt ships system only
Individual DC circuit breaker panels
At helm
(3) 8D 12 volt deep cycle and (2) Group 29
Battery boxes

Tankage
One Diesel fuel
Rectangular, epoxy coated aluminum
500 gallons

Safety equipment
Fire Extinguishing Equipment
Fixed System

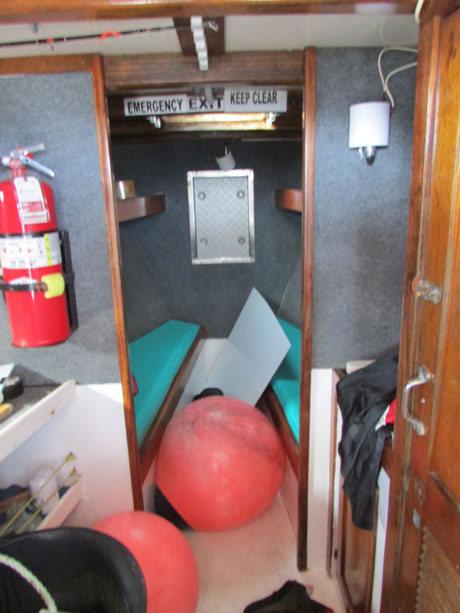

Number of hand Helds: Two B-II Dry chemical
Bilge Pumps: (2) 12 volt 3500 gph automatic and one hand pump
High water alarm
Anchor: 45lb.. Danforth
Rode: 40' 3/4" chain to 600' 3/4" rode
Horn
Life ring
Flare Kit

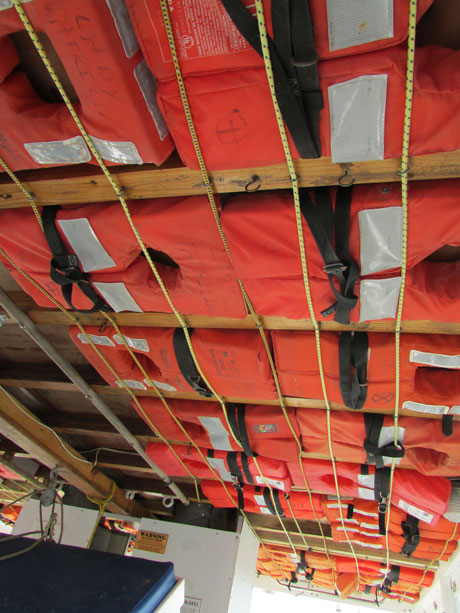

Personal floatation devices: 62 type I adult and 7 children's PFD's

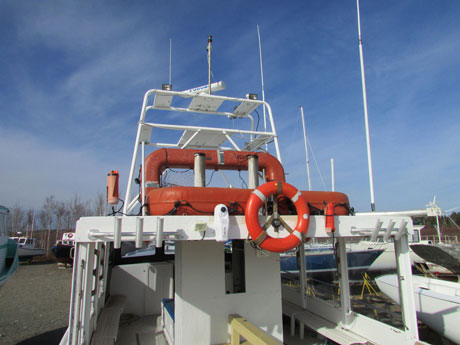

Raft: (1) 22 and (2) 15 person life floats secured on roof top
Epird

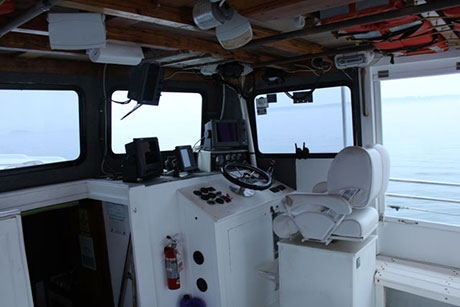

Electronics and navigational Equipment

Price: $219,500

Contact us at 207-667-7427 or email .
