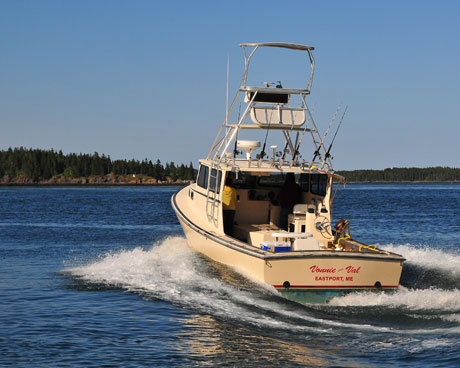

2000 33 Young Brothers Commercial

33 Young Brothers Commercial

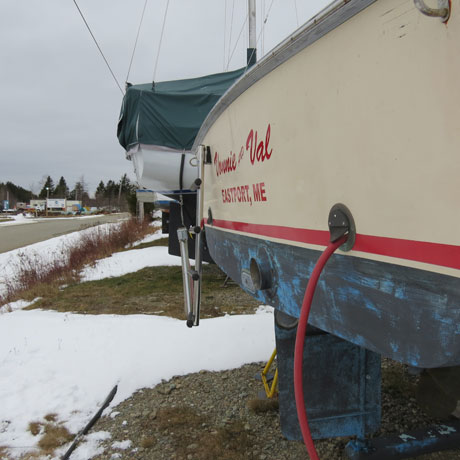

Name of Vessel: Vonnie and Val
Color: Beige
Home Port: Eastport ME 04631
Official No: Doc# 1094408
Builder: Young Brothers Boat shop
Finished by: Young Brothers Boat shop
Where Built: Corea, ME 04693
Hull No: YB33070K999
Type of Vessel: commercial
Date Built: 2000
Cruising speed: 18kts top speed: 27kts
Use: Charter
O.A. Length: 33' Beam: 11'
Freeboard: 30"
Draft: 42"
Length of Waterline: 32'6"

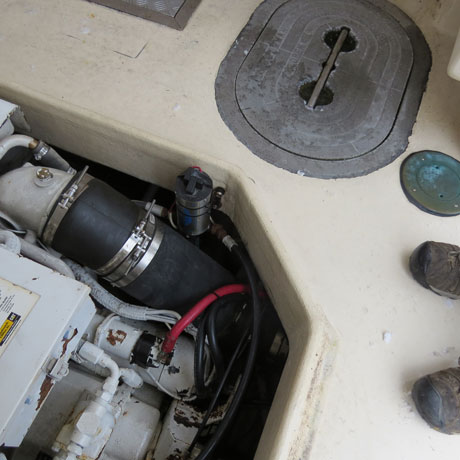

Maine Engine, Exhaust & Cooling System:
Diesel
Caterpillar
Year: 2000 - 2907 hours
Model no: 3126 No. of Cyl: 6
H.P. 420
Oil level: full
Oil leaks: no
Exhaust system: wet
Location: exit stern
Type of coolant system: heat exchanged
Coolant level: full Coolant Leaks: no
Condition of hoses: Good Condition of clamps: Good
Instrumentation: factory caterpillar
Type of Alarm System: oil, volts, water, gear pressure, rpm
Overall condition of engine: Good
Running Gear - Drive System:
Engine Beds: aluminum Engine Beds condition: Good
Motor mounts/material: steel Motor mount type: factory
Motor mount condition: good
Reduction Gear: Z-F Model no: 380A
Ratio: 2-1 Drive Saver:
Prop. Shaft Bearing: 1. Packing box Prop. Shaft Condition: good
Prop. Shaft Bearing: 2. cutlass

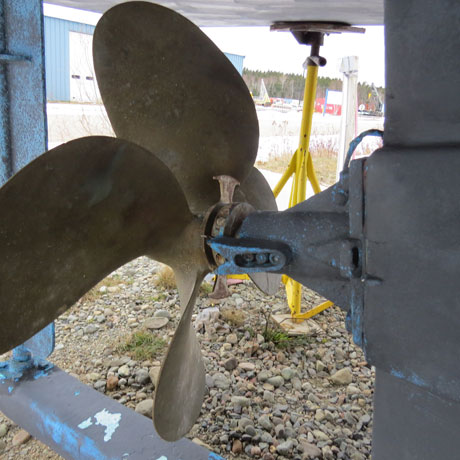

Prop Size: 26x26 B4 Blade Prop condition: good prop cage:
Prop cage material: Prop. Cage condition
Hydraulic and Steering Systems:
Hydr. Holding tank size: 1 6 gal Hydr. Holding tank Material: 2.
Holding tank cond: good Electric clutch: Yes

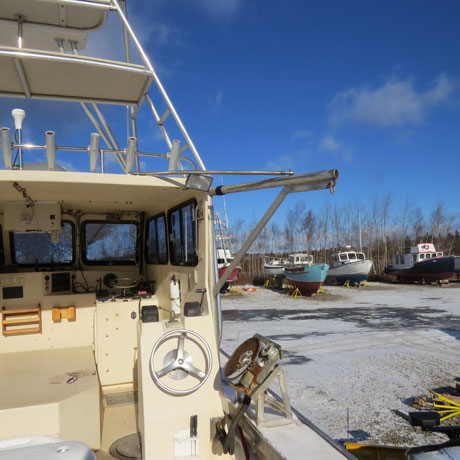

Pot Hauler: yes Size: 12" Material: Bronze/steel
Pot Hauler cond: good Motor: 2000 series control valve cond: good
Pumps: TC-24
Type of Steering system: Power No.of piston 2 Piston cond: good
Cond. Of hoses: good fittings: Good Helm: Stainless steel
Thru Hulls
No. on Port side: 1 Condition: good
No. on Starboard side: 2 condition: good
Type of rudder port: Bronze Condition: Good
Rudder : Stainless steel Shaft size: 7' 6" Diameter: 1 3/4
No. of work platform drains: 2 Size: 4" Cond: good
Distance Drains are above water: 4" Drain Design: round
Electrolisis Protection: Yes
Pumps & Electrical Systems:
Manual Bilge pump: Yes No. of bilge pumps: 2 Size: 1-2000gph, 1-1000gph
Bilge pump brand: Rule Bilge pump operation status: good
Bilge pump location: keel H.W.A.: yes Wash down pump: Yes
No. Of Batteries: 2 Size: 8-D Battery installation: tray
Type of Electrical panel: 16- unit panel
Type of wiring: Marine Wiring: Good
Master switch: yes Master switch location: inside cuddy door
Tankage and Piping:
Type of Fuel: Diesel No. of Tanks: 2 Total capacity: 100 gal each
Tank Material: fiberglass Tank location: under work platform Tank cond: good
Tank secured by: stringers Fuel Hoses: good Tank filing pipe: bronze
Vented: yes Shutoff Valves on tank: yes Accessibility: good

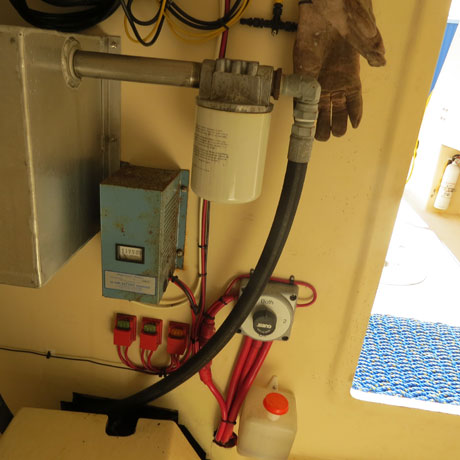

Filter system: 2-racor Filter Location: engine compartment
Filter cond: good

General Condition and Construction of:

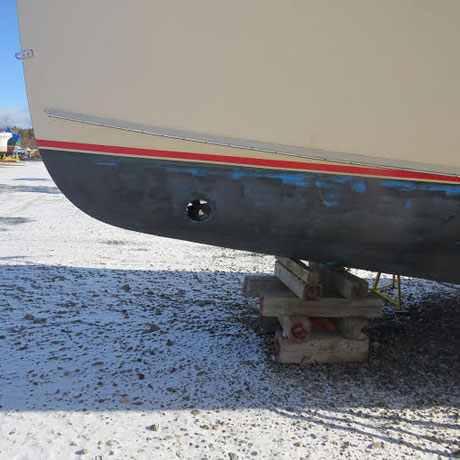

Hull: Good fiberglass
Keel: Good Fiberglass
Skeg: Good Fiberglass
Rudder: Good Fiberglass
Rudder Bearing: Good bronze
Hand Rails: Good pvc
Cuddy: Good molded fiberglass
Pilot House: good molded fiberglass
Bilges: Good fiberglass
Toe Rail: Good pvc
Decking: good molded fiberglass
Work platform: Good fiberglass over plywood
Bulkhead: good molded fiberglass
Mooring bit: stainless steel Secured by : Stainless steel bolts
Electronics:
Radar: Ratheon Auto Helm
Depth Rec: Furuno FCV-582L
V.H.F.: 2-Icon IC M59

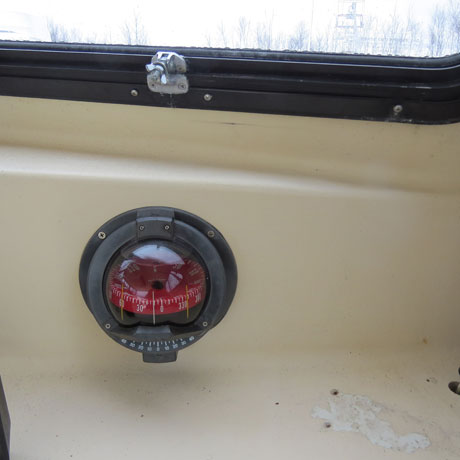

Compass: Ritchie Power Damp
Plotter: Garmin 12 inch screen
Wiring: Marine Condition: good
Condition of electronics: Good
Survival equipment:
Horn: Yes Whistle: Yes First-aid kit: yes
U.S.C.G. approved life jackets: yes Type: horse collar
No. of life jackets: 17 Life jacket conditions: good
Life ring: yes Life ring size: 24 Life ring color: orange Life ring cond: good
Length of life life: 60' flare kit: yes Flare kit size: 50 mile
Flare Kit Exp. Date: 9/16
Fire Extinguishers: yes Fire extinguishers: 3-portable
Anchor Type: Danforth Anchor size: 40lbs
Anchor Rope: 1/2" nylon Length: 600' Cond: good

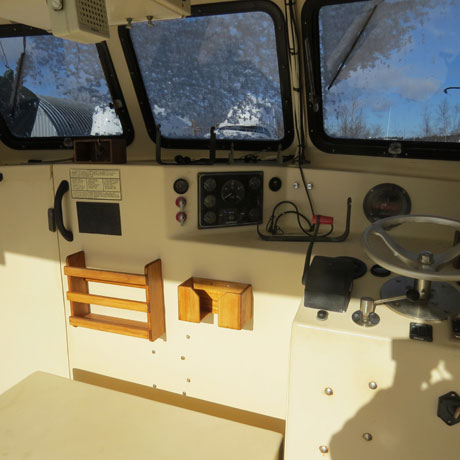

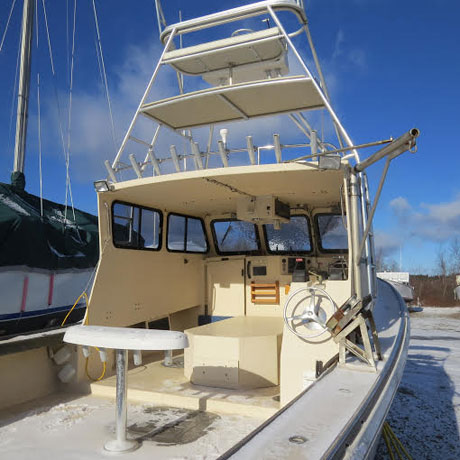

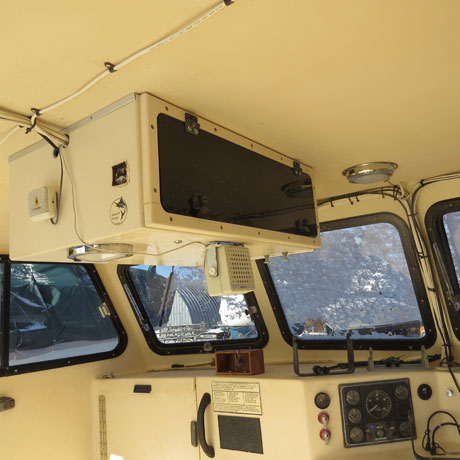

Pilot House & Equipment:
Windows: aluminum frame Condition: Good
Storage Lockers: yes Condition: Good
Engine controls: 3 sets Condition: Good
Heaters: yes Condition: good
Lights:
Running lights: yes
Green: yes
Red: yes
White: yes
Interior lights: yes
Flood lights: yes
Spot lights: yes
Condition of lights: good
Wiring: marine
Condition of wiring: good
Living Quarters:
Heat; yes
Storage Lockers: Yes

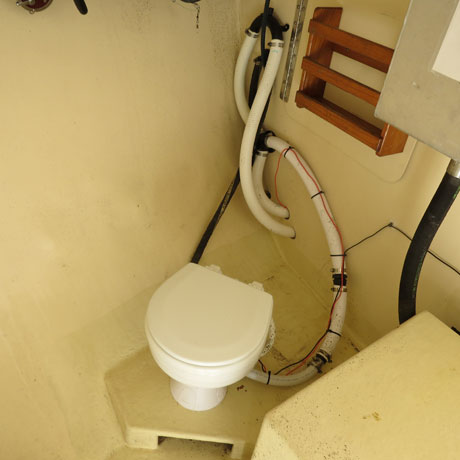

Toilet: Yes
Escape Hatch: Yes
Power Inverter: Yes
Cold Water tank: Yes
Extra Measurements:
Ceiling Heights:
Pilot House: 77"
Cuddy: 70 1/4"
Cockpit: Length: 18' 2"
Width: 8' 6"
Depth: 23"
Work Deck: Width: 9' 10"
Transom: Width: 10' 1"
Depth: 42"


Marine Surveyor Summary & Comments on F/V: Vonnie and Val
This vessel is in very good condition. Running gear and hydraulics are in fine working order. She should give many more years of dependable service.

Price: $136,000

Contact us at 207-667-7427 or email .
